Glass is a 100% recyclable product that makes a significant contribution to environmental protection. The application possibilities of glass have become very versatile and in certain fields of application recycled glass can be used already up to 90% in the production of new products today. In order to be able to separate laminated glass clean, simple and efficient from each another, a recycling system is required which produces a cleanly separated final product, but at the same time reduce wear costs and maintenance intervals.
The use of liquids, high speeds of shredders, as well as a cutting shredding in the treatment process, cause an unintentionally increase of wear costs in the glass as well as short replacement intervals of all wear parts. As a result, the cost of recycling PVB laminated glass increases and often makes it seem uneconomical why many laminated glass raw products are still being piled up on dumps around the world.
Material feed and pre-shredder
in one machine
Easy and fast Material feed
in hopper
1-man operation controlled from wheel
loader / excavator
Full automatic machine
operation
Adjustable cleaning efficiency
of glass and PVB foil
Easy and fast accessibility
of all machinery
Cost-effective and low-maintenance
system
Fully electric system
under 250 kW

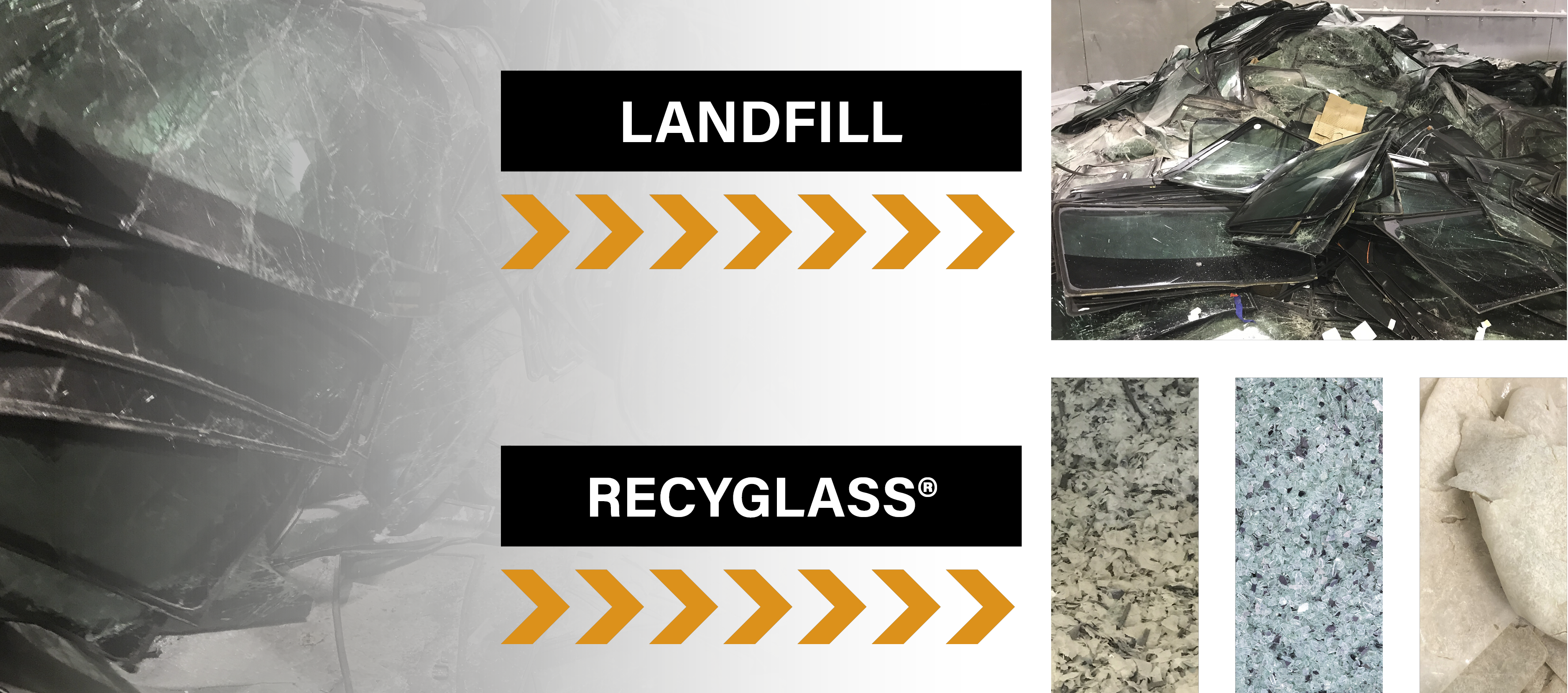

The idea of the Recyglass® recycling system is the simplest and most cost-efficient separation car windscreen components as well as various other laminated glass and safety glass products.
The combination of feed bunker and pre-shredder ensure an easy and continuous product feeding of the complete system. The shredder can be loaded with a wheel loader as well as with a sorting grapple on the excavator with up to 10 tons of material.
Thanks to a sophisticated geometry of the shredder shafts, which has been developed steadily over the last years, we achieve both a good throughput, a perfect pre-shredding for subsequent work steps, as well as an almost free and low-maintenance pre-shredding. Afterwards, the PTRG 100-67 separates the glass from the PVB foil without further shredding the foil smaller what is important for the separation later on.
Subsequently, the foils and glass are separated from one another by a sorting and screening processes. Foil that is not clean enough can be automatically returned to the Recyglass® process for an additional separation to ensure a consistent high-quality end product.
Glass is today one of the products that surrounds us every day and everywhere. The application possibilities of glass are constantly evolving and therefore also the amounts of glass waste that has to be recycled. Bottles and flat glass have been recycled economically almost everywhere for decades. For some years now, the process of laminated glass processing has been steadily evolving as demand for glass and also for PVB steadily increases.
The potential of laminated glass recycling can be recognized from the exponential increase in the global automobile stock. In recent years more and more companies have developed new applications for recycled PVB, which today is mainly made from laminated glass. The Recyglass® system has been specially developed for the separation of glass and PVB foil but also offers the possibility of recycling bottle glass, solar systems and other glass products with various expansion stages and machine components.
| PTG 4 | PTRG 100-67 | PTRG 100-100 | |
|---|---|---|---|
| Throughput per hour: | 40 t | 25 t | 35 t |
| Weight: | 9000 kg | 7000 kg | 9500 kg |
| Inlet size: | 2000 mm x 3000 mm | 280 x 670 mm | 280 x 1000 mm |
| Feed size: | 3000 mm | 300 mm | 300 mm |
| Performance: | 4 x 18,5 kW | 90 kW | 132 kW |
| Final Grain: | 0 - 250 mm / 0 - 200 mm depending on shafts | 0 - 30 mm Glas | 0 - 30 mm Glass |
Photovoltaic modules are among the most environmentally friendly energy sources. Nevertheless, they are also among the most resource-relevant waste products, which is why the recycling of PV modules is becoming increasingly important. PV modules contain valuable materials such as aluminum, glass and various plastics. According to the current status (2022), more than 95% of these materials can be recycled, and we are doing our part.
